Schneider Plc selection starts with the control task

Compare the project before and after its I/O, scan, network, environment, and lifecycle requirements are documented. A familiar catalog number is not a substitute for an architecture review.

Before reviewDevice count, protocol ownership, and replacement horizon remain assumptions.

After reviewThe inquiry records CPU load, local and remote I/O, communications, panel conditions, and verification steps.

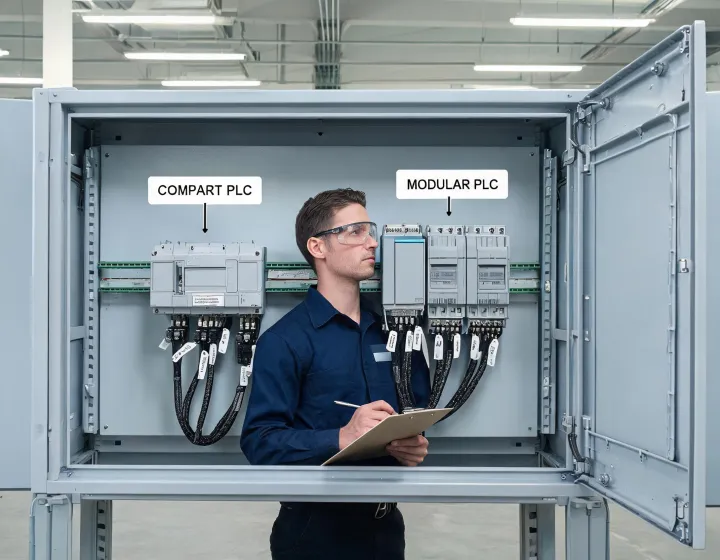

PLC engineer comparing compact and modular control architectures

PARAMETER WORKBENCH

Turn five inputs into a reviewable PLC brief

Start with physical and logical I/O counts, then reserve channels for the documented growth case. Record required task periods and the longest acceptable response path rather than treating scan time as a single universal number. Identify Modbus TCP, EtherNet/IP, serial, or gateway connections and assign ownership for every interface.

Panel conditions matter as much as memory. Capture 24 V DC control power, ambient temperature, ingress protection, grounding, isolation, creepage distance, clearance distance, and any applicable UL, CSA, CE, RoHS, IEC, or CB Scheme evidence at the exact series level.

I/O envelope

Count digital, analog, high-speed, safety, motion, and spare channels by location.

Execution demand

List periodic tasks, event response, data logging, recipe handling, and communications load.

Network topology

Map node count, managed switches, redundancy expectations, addressing, and loss behavior.

Installation limits

Verify DIN rail space, IP rating, temperature, EMC practice, power budget, and service access.

Lifecycle boundary

Record firmware, software version, source-code ownership, spare strategy, and migration window.

Three architecture choices with different consequences

Compact controller

A compact platform can reduce cabinet space and part count for a bounded machine. Expansion ceilings, specialist modules, communications capacity, and future remote I/O must be checked before the smaller footprint is treated as a lifecycle saving.

Modular controller

A modular rack supports broader I/O and processor options, but adds backplane, power-supply, spare-slot, and configuration decisions. The quotation should identify every module and compatible revision rather than rely on a family name.

Distributed control

Distributed I/O can shorten field wiring and improve fault isolation. It also increases network dependency, switch configuration, cybersecurity scope, and commissioning checkpoints. Centralized control simplifies governance; distribution improves local autonomy. Neither is automatically preferable.

Limits to keep visible

Published I/O capacity does not prove acceptable scan performance under the final program. A communication label does not prove two devices share the same object model or diagnostics. Certification of a controller does not certify the assembled panel. High utilization may reduce enclosure size, while conservative derating can improve thermal margin and service life. Validate the selected series under the actual load, firmware, network traffic, ambient temperature, and fault-current context.
